ASCO Solenoid Valve SCG353A044/047/051/055
American ASCO solenoid valve
American ASCO joucomatic is a member of Emerson group, one of the world’s top 500 companies. It is a multinational company that mainly produces and sells fluid control valves and pneumatic control components. With more than 100 years of production technology experience, it has more than 30 factories in the world and provides more than 23000 fluid control products for customers. ASCO has many brands: etc. are members of ASCO, among which ASCO / red hat and sirai brands include general-purpose products and some products suitable for special industries and mines, which can control common media. General control is a series of combustion valves, the medium can be fuel, etc.
Products Description

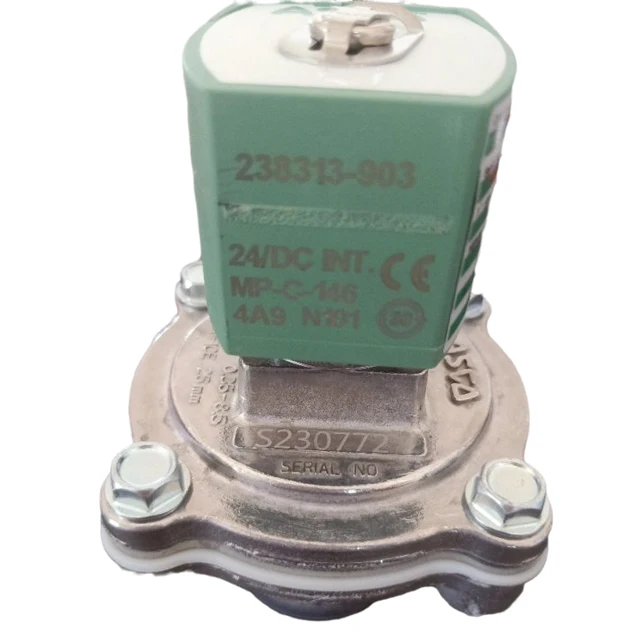

ASCO pulse solenoid valve
All ASCO products are designed and manufactured according to international standards. Solenoid valve products can meet the needs of various applications, control different liquid and gaseous fluids, and provide a wide range of choices: the medium can be flammable, explosive or corrosive;
American ASCO solenoid valve
The pressure can reach 150 bar; The temperature can be from – 50c to 300C; The caliber ranges from 1 / 8 inch to 6 inch. The products include common type, explosion-proof type, manual reset type, intrinsically safe type, sliding type, long life type, steam / hot water special and gas control valve.
Product Paramenters
|
ASCO SOLENOID INTERFACE ELECTRICAL CHARACTERISTICS
|
|||||||||
|
prefix
option
|
power ratings
|
operator
ambient
temperature range (TS)
|
safety code
|
electrical
enclosure
protection
(EN 60529)
|
replacement coil
|
||||
|
inrush ~
|
holding
~
|
hot/cold
=
|
~
|
=
|
|||||
|
VA
|
VA
|
W
|
W
|
°C
|
230 V / 50 Hz
|
24 V DC
|
|||
|
Basic power (BP)
|
|||||||||
|
SC
|
55
|
23
|
10.5
|
9/11.2
|
-40to+75
|
EN 60730
|
moulded IP65
|
400-425-117
|
400-425-142
|
|
SCDU
|
55
|
23
|
10.5
|
9/11.2
|
-40to+75
|
II 3D IP65
T135°C(~)/T 200°C(=)
|
moulded IP65
|
_
|
_
|
|
WP/WS
|
55
|
23
|
10.5
|
9/11.2
|
-40to+75
|
EN 60730
|
steel IP67
|
400-405-117
|
400-405-142
|
|
WPDU/WSDU
|
55
|
23
|
10.5
|
9/11.2
|
-40to+75
|
II 3D IP67
T 200°C
|
steel IP67
|
_
|
_
|
|
(WS)
NF/NL
|
55
|
23
|
10.5
|
_
|
-60to+25
/40/60
|
II 2G/D EEx d IIC T6/T5/T4
|
alu/steel/cast iron IP67
|
400-405-117
|
_
|
|
(WS)
NF/NL
|
_
|
_
|
_
|
9/11.2
|
-60to+25
/40/60
|
II 2G/D EEx d IIC T6/T5/T4
|
alu/steel/cast iron IP67
|
_
|
400-405-142
|
|
NK
|
55
|
23
|
10.5
|
9/11.2
|
-40to+50
/60
|
II 2G/D EEx d IIB+H2 T4(~/=)
|
aluminium IP65
|
400-405-117
|
400-405-142
|
|
EM/WSEM
|
55
|
23
|
10.5
|
9/11.2
|
-40to+40
|
II 2G/D EEx em II T3
|
steel IP67
|
400-909-117
|
400-913-142
|
|
PV
|
55
|
23
|
10.5
|
9/11.2
|
-40to+65
|
II 2G/D
EEx m II T3(~)T4(=)
|
moulded IP65
|
_
|
_
|
|
EF
|
55
|
23
|
10.5
|
9/11.2
|
-40to+54
/40
|
NEMA type 7 and 9
|
NEMA 4X
|
238-610-058
|
238-710-006
|
|
ZN
|
55
|
23
|
10.5
|
9/11.2
|
-20to+50
|
II 3G/D EEx nA II T3
|
moulded IP65
|
_
|
_
|
|
Low power (LP)
|
|||||||||
|
SC
|
1.5
|
1.5
|
1.5
|
1,7/1,7
|
-40 to +60
|
EN 60730
|
moulded IP65
|
400-925-097
|
400-925-042
|
|
WP/WS
|
1.5
|
1.5
|
1.5
|
1,7/1,7
|
-40 to +60
|
EN 60730
|
steel IP67
|
400-926-097
|
400-926-042
|
|
(WS)
NF/NL
|
_
|
_
|
1.9
|
– / 1,8
|
-60 to + 75
/80
|
II 2G/D EEx d IIC T6/T5
|
alu/steel/cast iron IP67
|
_
|
_
|
|
EM/WSEM
|
1.5
|
1.5
|
1.5
|
1,7/1,7
|
-60 to + 40
/55
|
II 2G/D EEx em II T6/T5
|
steel IP67
|
_
|
_
|
|
PV
|
_
|
_
|
_
|
1,7/1,7
|
-40 to +60
|
II 2G/D EEx m II T4
|
moulded IP65
|
_
|
_
|
|
EF
|
_
|
_
|
_
|
1,7/1,7
|
-40 to +40
|
NEMA type 7 and 9
|
NEMA 4X
|
_
|
_
|
|
ISSC
|
_
|
_
|
_
|
0,4/0,4
|
-40 to +60
|
II 2G/D EEx ia IIC T6
|
moulded IP65
|
_
|
268-976-001
|
|
WPIS
|
_
|
_
|
_
|
0,4/0,4
|
-40 to +60
|
II 2G/D EEx ia IIC T6
|
steel IP67
|
_
|
268-900-001
|
|
ZN
|
_
|
_
|
_
|
1,7/1,7
|
-20 to +50
|
II 3G/D EEx nA II T3
|
moulded IP65
|
_
|
_
|
